SCOOP Suter MMX 500 FIRST pictures of the 195bhp two-stroke!

Posted

by



Suter

SCOOP Suter MMX 500 FIRST pictures of the 195bhp two-stroke!

Article continues below…
Advert

Enjoy everything More Bikes by reading the monthly newspaper, Read FREE Online.

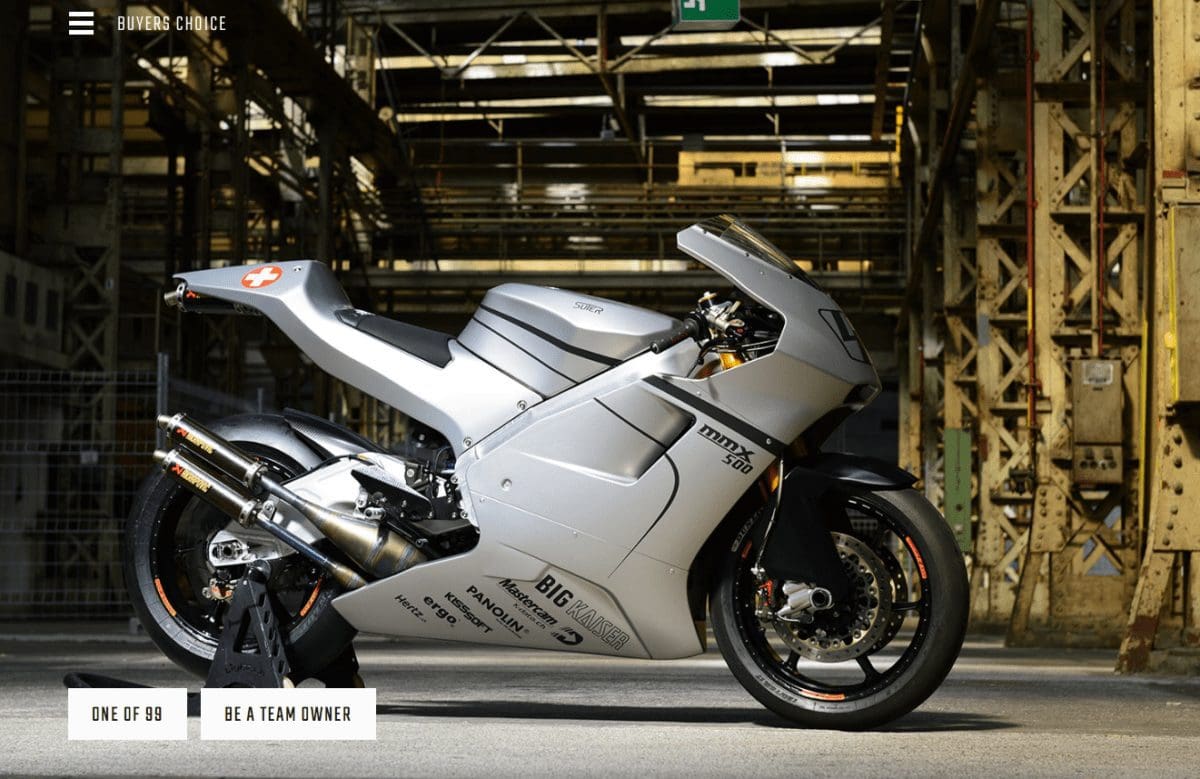

This is the Suter MMX 500 – the replica GP500 two-stroke bike that anyone can buy.

Suter says that it was spurred on to make the motorcycle for classic racing events after the success of the recent World GP Bike Legends event at Jerez in June.

Details are coming through, but here’s what we’ve got from Suter directly so far:

Article continues below…
Advert

“The Suter MMX 500 is an exclusive racing motorcycle, which is also marked by its strictly limited edition status. Developed and produced by our racing division, this technical master­piece is built for skillful hands and appreciating hearts only.

“Engineered applying the latest design and manufacturing technologies, using high-quality precision parts, we put all our passion into it. Double counter rotating crankshafts and an electronic fuel injection iconify our effort in building it.

“We offer 195hp @ 13’000 rpm with an astonishing weight of 127kg for 120‘000 Swiss Francs. Maximum speeds in excess of 310 km/h are then in the hands of the pilot …

Article continues below…
Advert

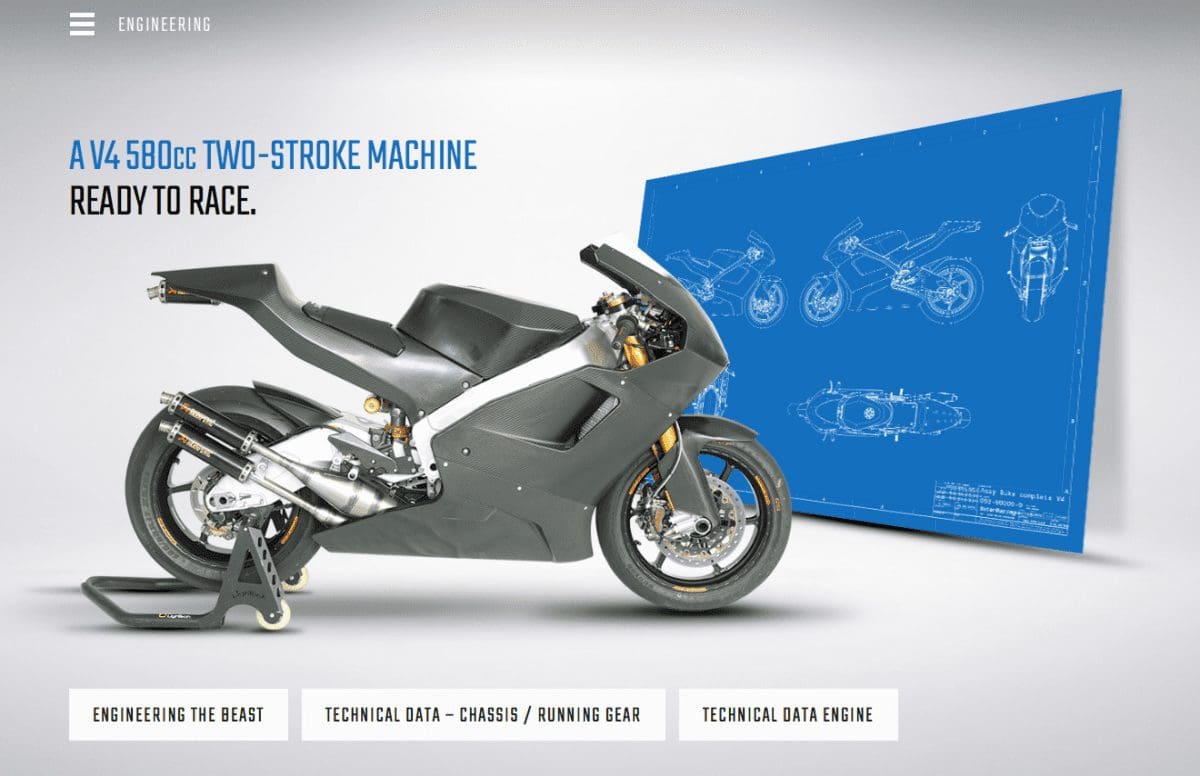

Suter2

Engineering the beast

“The Suter 500 project is very ambitious and took an enormous
amount of development. To combine almost lost know-how
in two-stroke technology with the latest high-tech motorcycle
developments demanded a sophisticated approach.

“Our engineers and technicians did everything imaginable to make
this motorcycle meet the expectations we also had ourselves.
Supported by a state of the art production facility we focused
entirely on Swiss quality and perfect craftsmanship.

Article continues below…
Advert

“We are proud of the outcome… 195hp | 127kg | >310 km/h

Specification

FRAME CNC machined Aluminium twin spar with multi adjustable
steering/wheelbase/riding position/height
SWINGARM Aluminium swingarm, CNC machined, adjustable
SUSPENSION Öhlins upside down front fork & rear shock; all adjustable for pre-load,
compression & rebound damping. Different rear links available
WHEELS OZ (Magnesium or Aluminium)
17x 3.75 Front
17x 6.0 Rear
TYRES 125/75 R 17 Front
205/75 R 17 Rear
BRAKES Brembo
Two 320mm steel front disc with 4 piston calipers
One 218 mm steel rear disc with 2 piston caliper
FUEL TANK Carbon Fibre / Inbuilt fuel pump
BODYWORK Carbon Fibre
DATA RECORDING 2D (optional)



DISPLACEMENT 576 ccm
BORE X STROKE 56 x 58,5
MAX. REVS 13’000
MAX POWER 195 hp
ASPIRATION Electronic fuel injection
four port throttle body
four carbon reed valves
EXHAUST VALVE Double flap
electronic controlled
EXHAUST Akrapovic four single resonance
Titanium chambers
GEARBOX SRT six speed cassette gearbox
CLUTCH TYPE SuterClutch multi disc dry
IGNITION Mectronic ECU



Suter does promise that the new bike will have ‘the tarmac-shredding soul of the original machines that inspire it’.

It’s not the first time that Suter has made a 500cc two-stroke V4 for people to buy though, in 2009 the firm released it’s Suter SRT500 (pictured below). That bike made more than 200bhp and was based around the Ilmor 2007 MotoGP bike. The SRT500 cost around £75,000.
