2015 Suzuki GSX-S1000 020

Just unveiled is the new Suzuki GSX-S1000 ABS. A street bike with the heart of a race machine, this is basically a ready-made GSX-R1000 street fighter.

Traction control and ABS help to tame this supersport motor, while a less aggressive riding position should make this a fun, but – dare we say it – almost practical bike.

Article continues below…
Advert

Enjoy everything More Bikes by reading the monthly newspaper, Read FREE Online.

35 years after the birth of the original GSX model, the GSX-S1000 takes the GSX line in an aggressive new direction. The roots of the GSX series started in 1976 with the GS750 – Suzuki’s first four-stroke in-line-four cylinder sports bike. In 1980, the GS engine evolved to a 16-valve design with the introduction of the GSX750E. It was the origin of the glorious GSX lineage, followed by the radical GSX1100S KATANA in 1981, and the legendary, original GSX-R750 in 1985.

The concept of the original GSX was high-performance sportsbike which has broad power band, nimble handling, and great durability. Its heritage is still alive in the engineering philosophy of the all current GSX models, from top-end Moto GP race machine to street legal on-road bikes.

Here are the full details of this new bike, straight from Suzuki:

Article continues below…
Advert

2015 Suzuki GSX-S1000 053

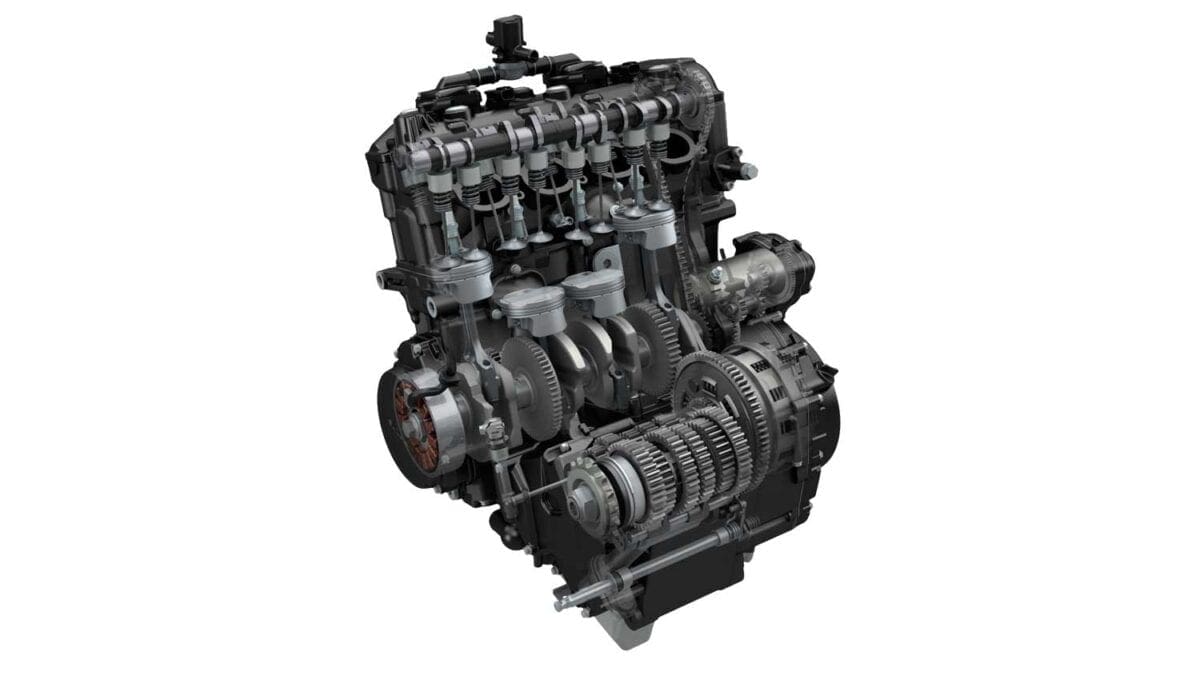

Engine design – outline

Four-stroke, liquid-cooled, DOHC, 999cm3 inline-four engine, street-tuned version of the legendary 2005-2008 GSX-R1000 engine, is designed to provide smooth throttle response, immediate, controlled acceleration. That results in exciting, adrenaline-rushing performance in sport riding.

Article continues below…
Advert

  • We chose 2005-2008 GSX-R engine, not using that of the current GSX-R1000. The reasons are;
  • Because of its long stroke design, it has broad low-to-mid range power/torque that is more suitable for street riding.
  • Because of its crankshaft/gearbox layouts, the main frame can be designed straight from steering head to swing-arm pivot. It enables us to design the main frame lightweight.
  • 2005-2008 generation GSX-R1000 won number of championship all over the world. This engine has great reputation in the market.

2015 Suzuki GSX-S1000 047

The GSX-R1000 engine, which started out as a long-stroke version of the GSX-R750 engine, has a long-stroke design with a 73.4mm bore and 59.0mm stroke. The long-stroke design allows the combustion chamber to be compact. It makes it possible to regulate compression ratio while maintaining a flat-top piston shape and power characteristics with a broad spread of power throughout the rev range can be obtained.

In this GSX-S1000, the legendary engine is re-tuned for the real world riding environment, without detracting the raw power of GSX-R1000 – the broad low-end torque and adrenaline rushing performance in the high rev range.

Article continues below…
Advert



Displacement 999cm3
Bore x Stroke 73.4mm x 59.0mm
Compression ratio 12.2 : 1
Max power TBA
Max torque TBA

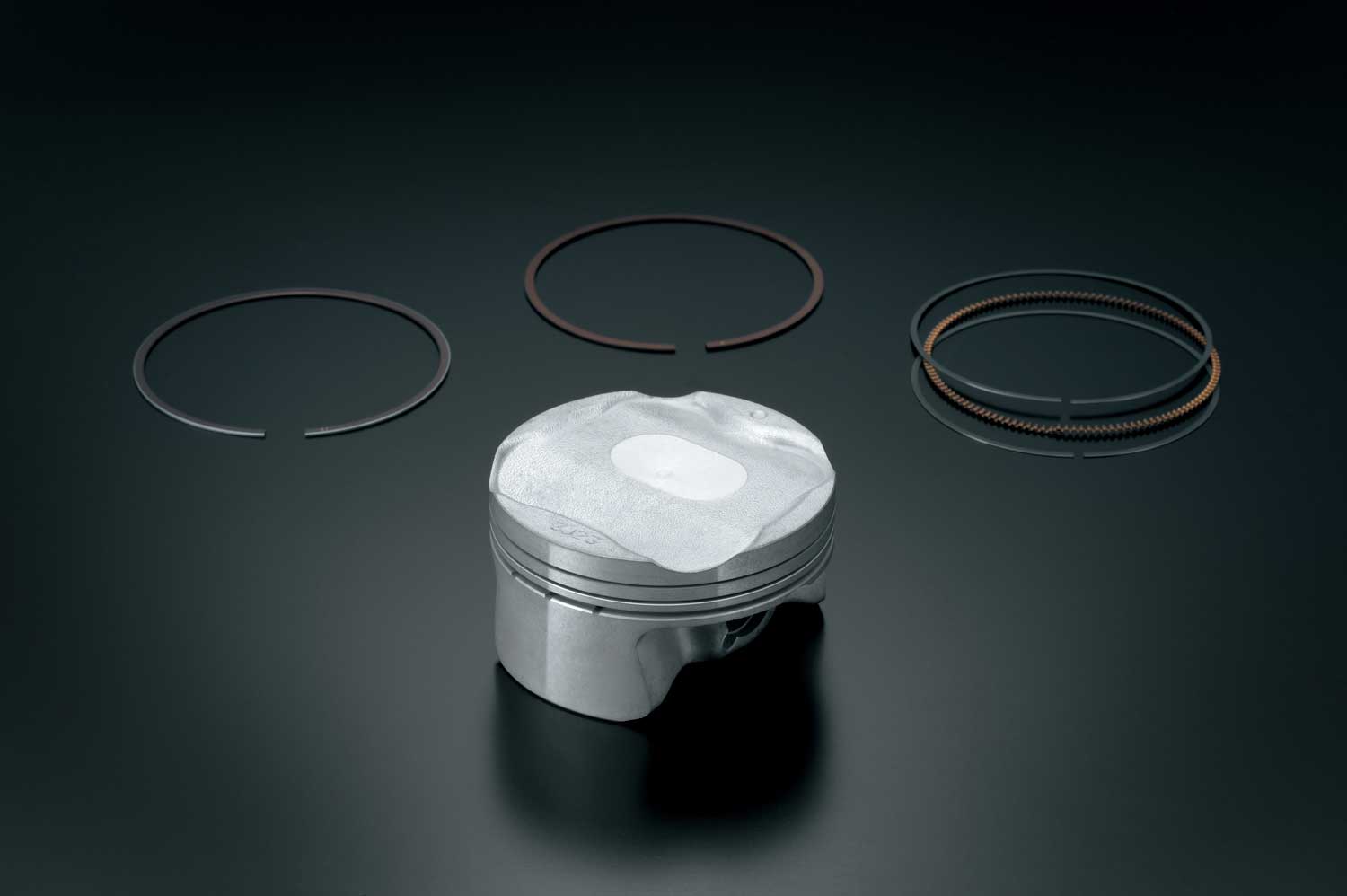

Pistons and Piston Rings

  • New pistons were engineered with use of FEM (Finite Element Method) analysis to achieve optimal rigidity and weight.
  • The piston and piston rings are designed 3% lighter than that of the 2007 GSX-R engine without compromising the durability.
  • The new cam profiles are designed to optimize the valve timing to tune the GSX-R1000 engine – which is designed keeping in mind racetrack use – to obtain the GSX-S1000 power character that’s more suited to the streets and winding roads.
  • Iridium spark plugs heighten the spark strength and combustion efficiency, thereby contributing to higher power, more linear throttle response, easier engine start-up, and a more stable idle compared to conventional type.
  • Suzuki Composite Electrochemical Material (SCEM)-plated cylinders integrated into the upper crankcase reduce friction and improve heat transfer and durability.

2015 Suzuki GSX-S1000 036

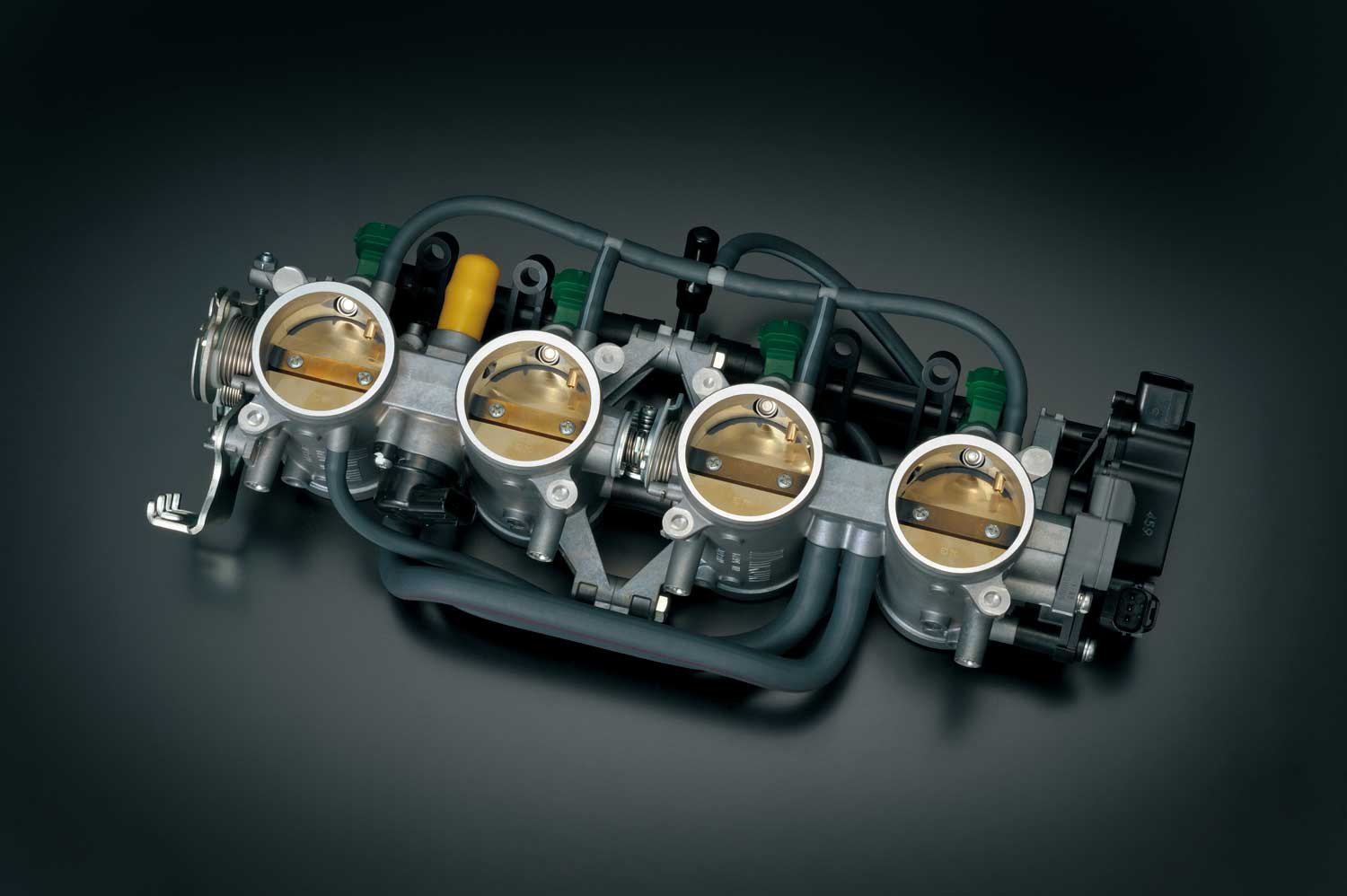

Fuel injection

  • Fuel injection system employs Suzuki’s original, SDTV (Suzuki Dual Throttle Valve) 44mm throttle body (same size as GSX-R1000K7), the secondary throttle valves are controlled by servo motor for smooth power delivery and optimum combustion efficiency.
  • Fuel injectors are 10-hole; long-nosed injectors on each throttle body improve fuel atomization for better combustion efficiency and while reducing fuel consumption.
  • Fuel injection works with O2 feedback system and intake pressure sensor for optimum combustion efficiency in various conditions, reduces emissions to meet Euro 3 requirement.

 2015 Suzuki GSX-S1000 024

2015 Suzuki GSX-S1000 043

Air Cleaner

  • Air cleaner is newly designed to match with required intake capacity.
  • The air cleaner has partition plate inside the box, which guides air into the box, that increases intake efficiency and reduces intake noise.

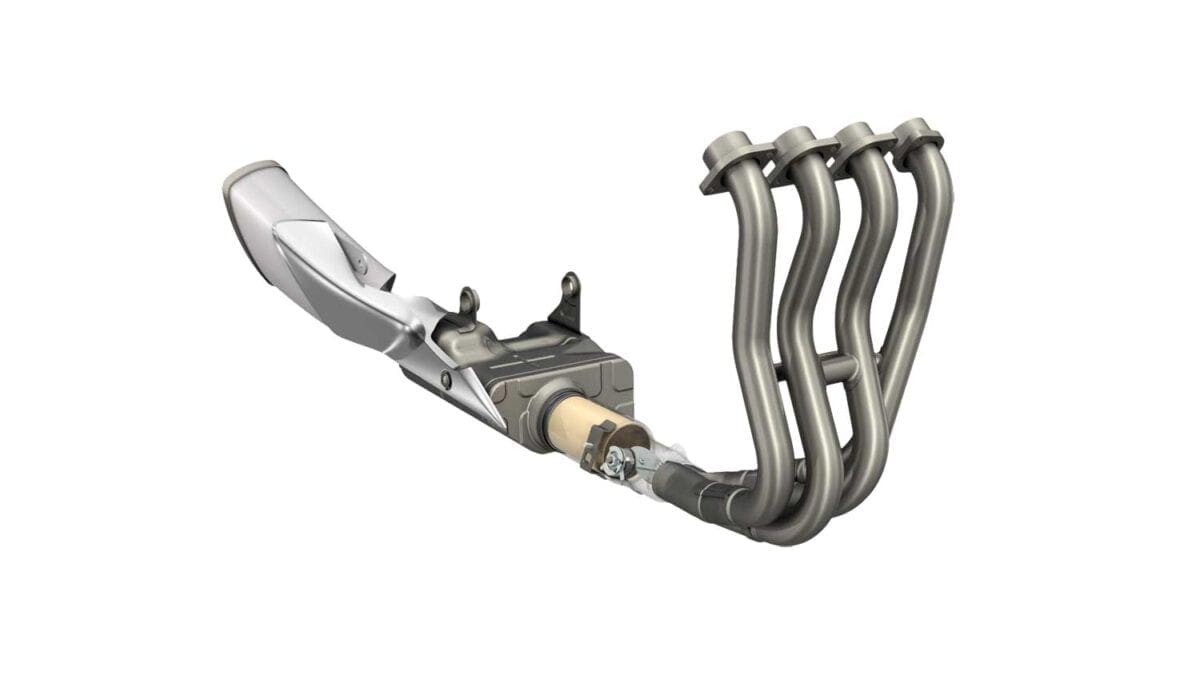

Exhaust System

  • Exhaust system is newly designed to achieve clean looks, exciting exhaust notes, and adrenaline-rushing performance.
  • The exhaust system is 4-into-2into-1 system, it has equalizer pipes between 1 and 4, 2 and 3 header pipes. This design contributes to stronger low-to-mid range output by fine tuning the exhaust pressure waves.
  • The system has exhaust chamber after the joint section. The chamber is carefully shaped to fit under the engine. Thanks to the exhaust chamber, the muffler size is minimized for clean, agile look of rear section.
  • The exhaust system contains catalyzer for clean emission. It conforms to the strict Euro 3 emission regulations.

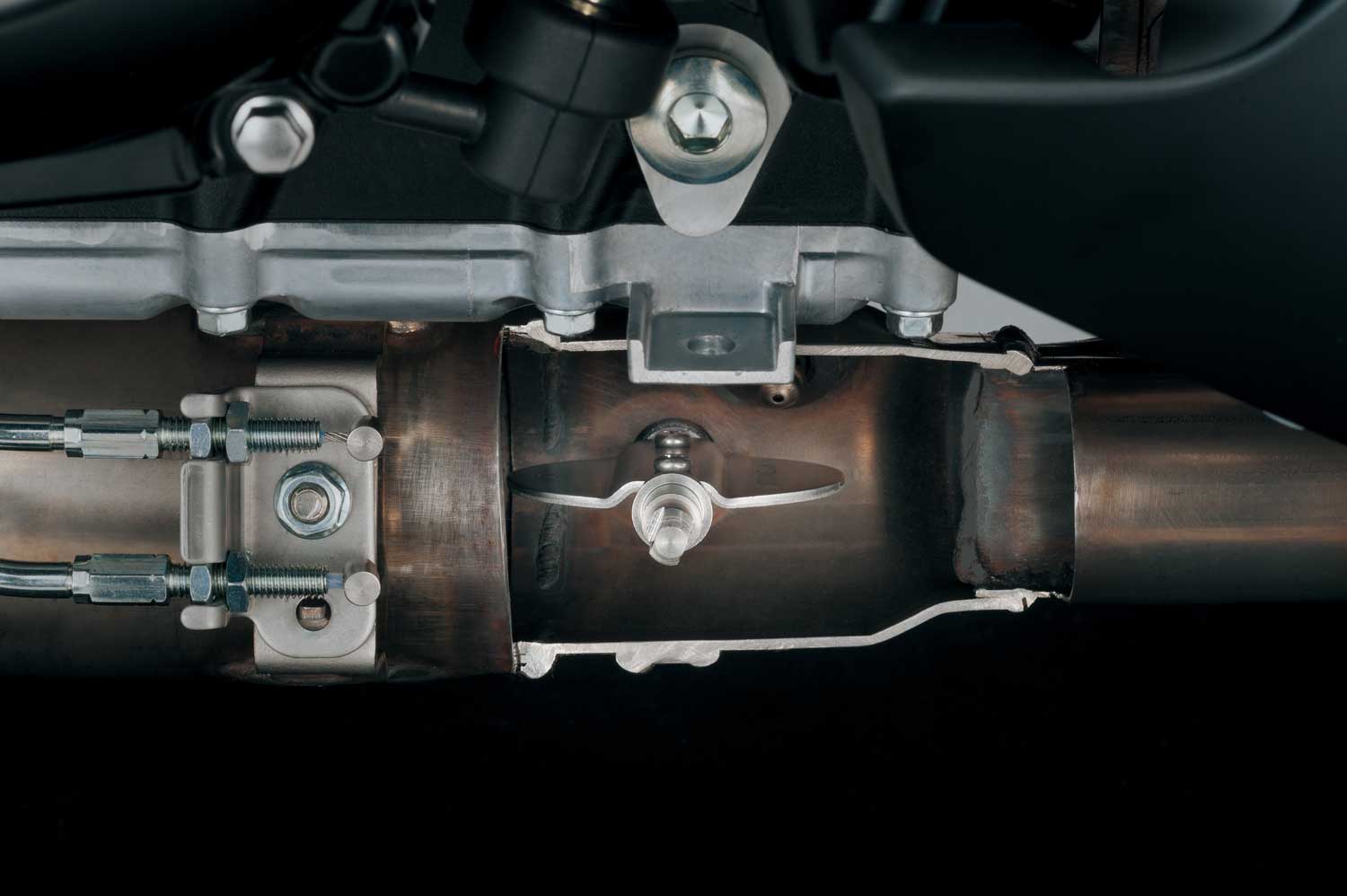

  • The new GSX-S1000 uses the Suzuki Exhaust Tuning (SET) system. A butterfly valve is actuated by a servo motor. The amount of valve opening is determined by engine rpm, throttle position and gear position. The SET system controls exhaust pressure waves in order to improve engine combustion at low rpm.

2015 Suzuki GSX-S1000 0582015 Suzuki GSX-S1000 025

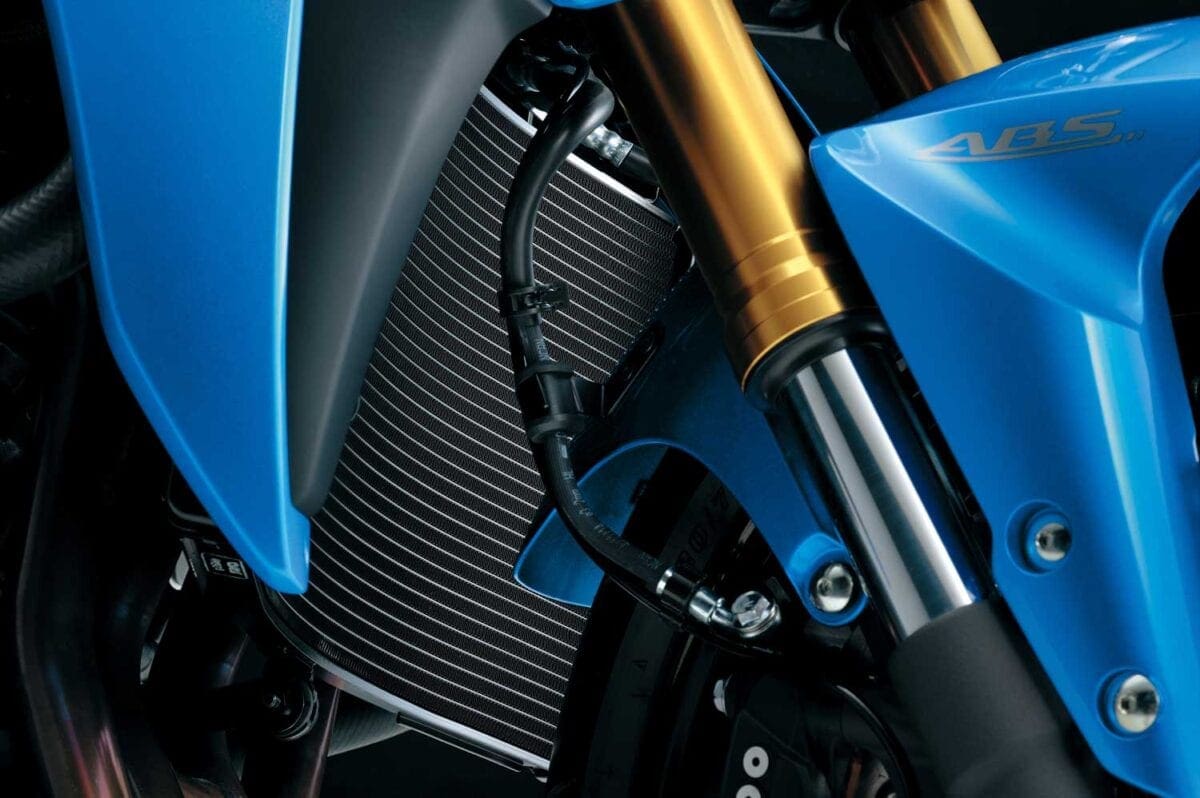

Cooling System

Radiator Newly designed, High-efficiency round shaped radiator has strong cooling performance. The radiator shrouds efficiently guides air to radiator core.

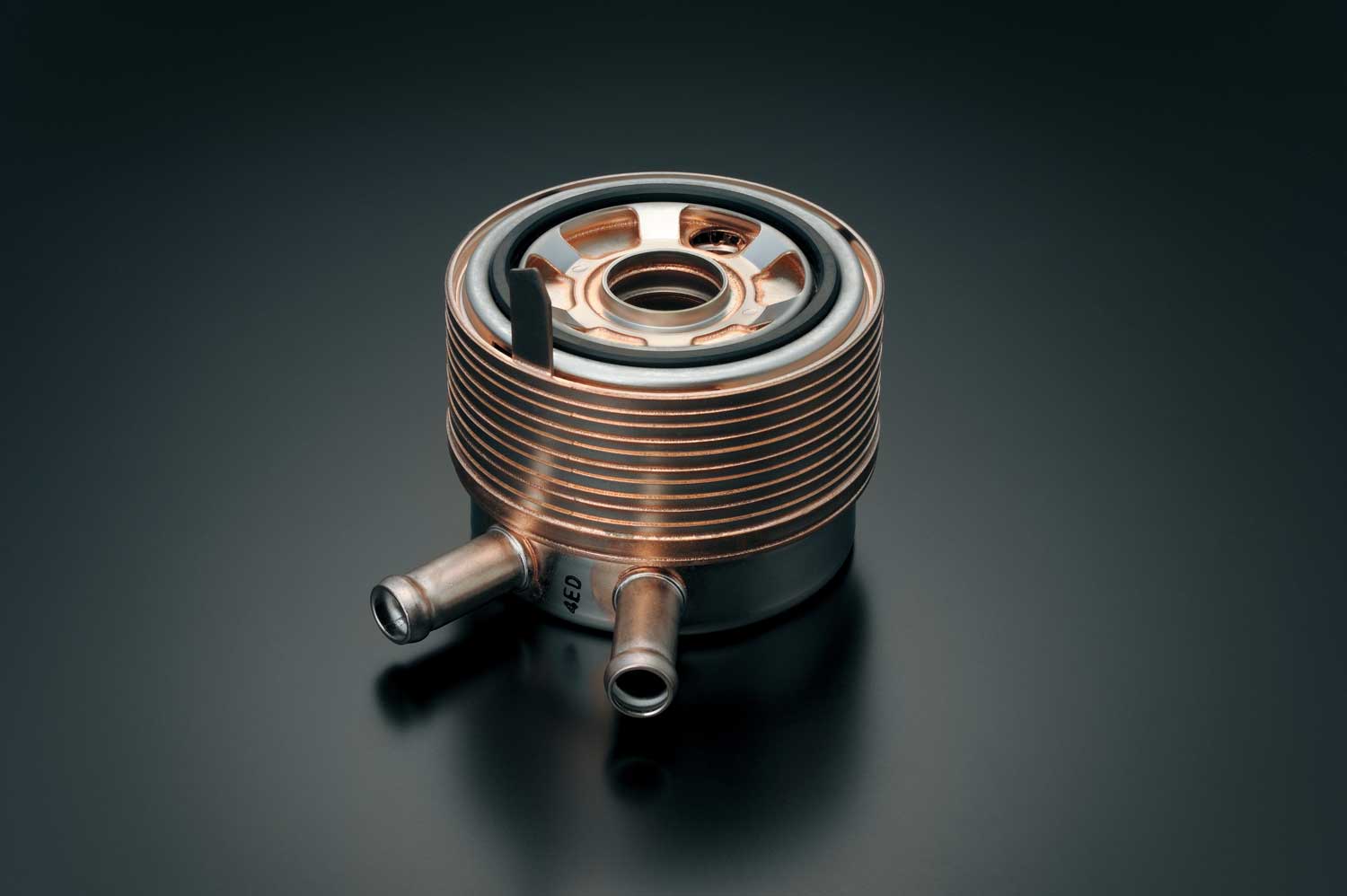

Oil Cooler Liquid-cooled oil cooler is used unlike air-cooled type on the GSX-R1000. Benefit of liquid-cooled oil cooler is lightweight, compact and clean look. Thanks to its compact design, it creates room for exhaust pipes.

 2015 Suzuki GSX-S1000 037

2015 Suzuki GSX-S1000 033

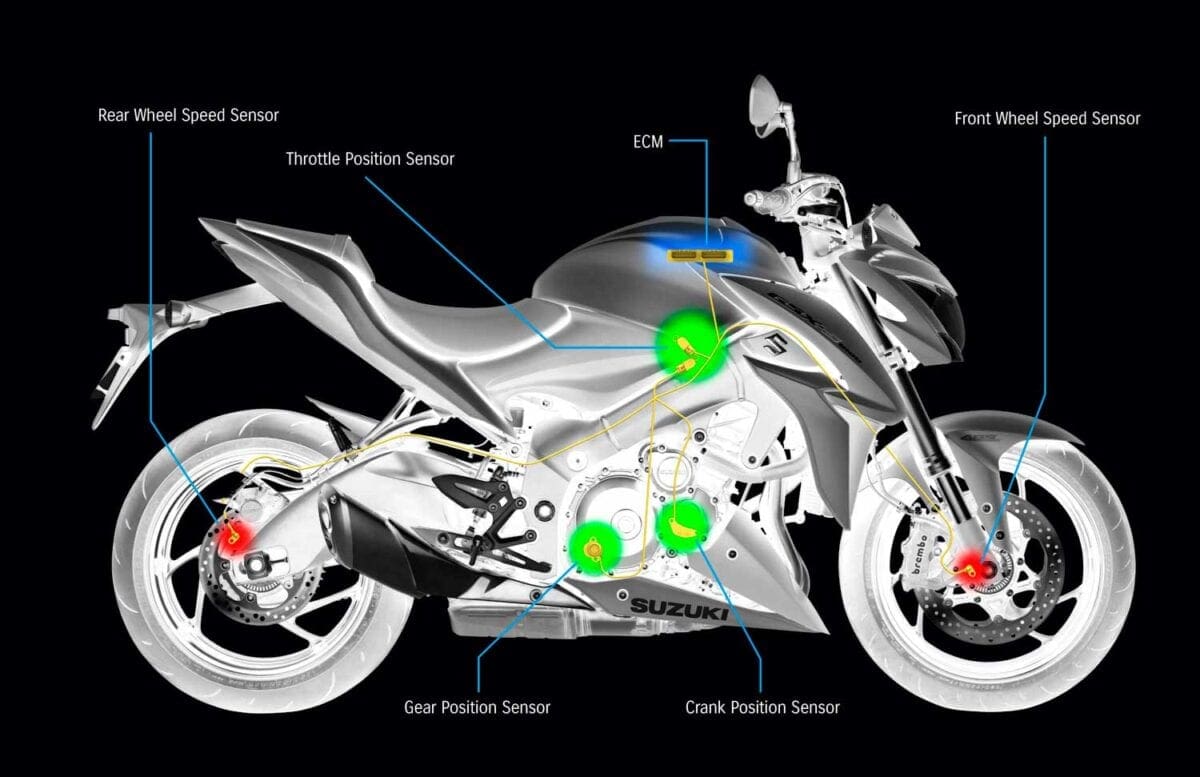

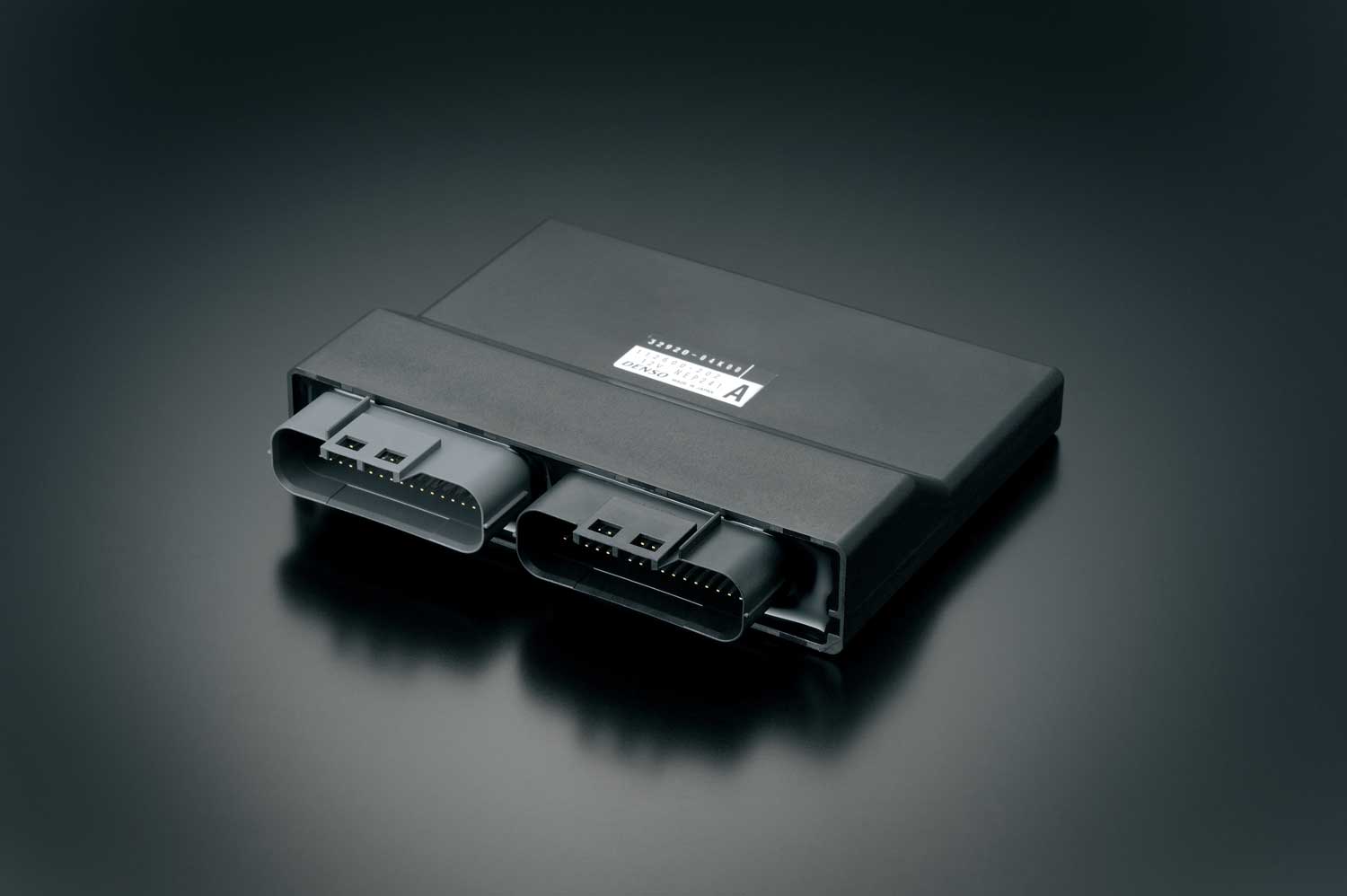

Three-Mode Traction Control System

2015 GSX-S1000 features Suzuki’s advanced traction control system to let the rider to control throttle with more confidence in various riding conditions. As a results rider can enjoy sport riding with more confidence, with less stress and fatigue.

Suzuki’s traction control system continuously monitors front and rear wheel speeds, throttle position sensor, crank position sensor and gear position sensor, and quickly reduce engine output when wheel spin is detected. Engine output is controlled by managing ignition timing and air delivery to ensure smoother traction control operation.

Suzuki’s Traction control system confirms conditions every 4 milliseconds, and governs ignition, which allows extremely quick reaction.

Suzuki’s system precisely controls output by optimizing ignition timing and air delivery depends on the conditions. That results in smooth, natural control of power, which does not bother sport riding even in the system is working.

Rider can select 3 different modes 1, 2, 3 and off, depends on conditions or rider’s preference. The difference between mode 1, 2 and 3 is sensitivity levels.

Mode 1 is the lowest sensitivity level, allows certain level of rear wheel spin. It is suitable for sport riding in good grip road conditions.

Mode 2 is the second lowest sensitivity level. System activates slightly earlier than Mode 1. It is suitable for most of the riders and road conditions.

Mode 3 is the highest sensitivity level, system activate earlier than other 2 modes. It is suitable in bad road conditions.



Mode Sensitivity level Suitable conditions
OFF
1 Low Sport riding, good road conditions
2 Middle City riding, regular road conditions
3 High Wet or cold conditions

2015 Suzuki GSX-S1000 061

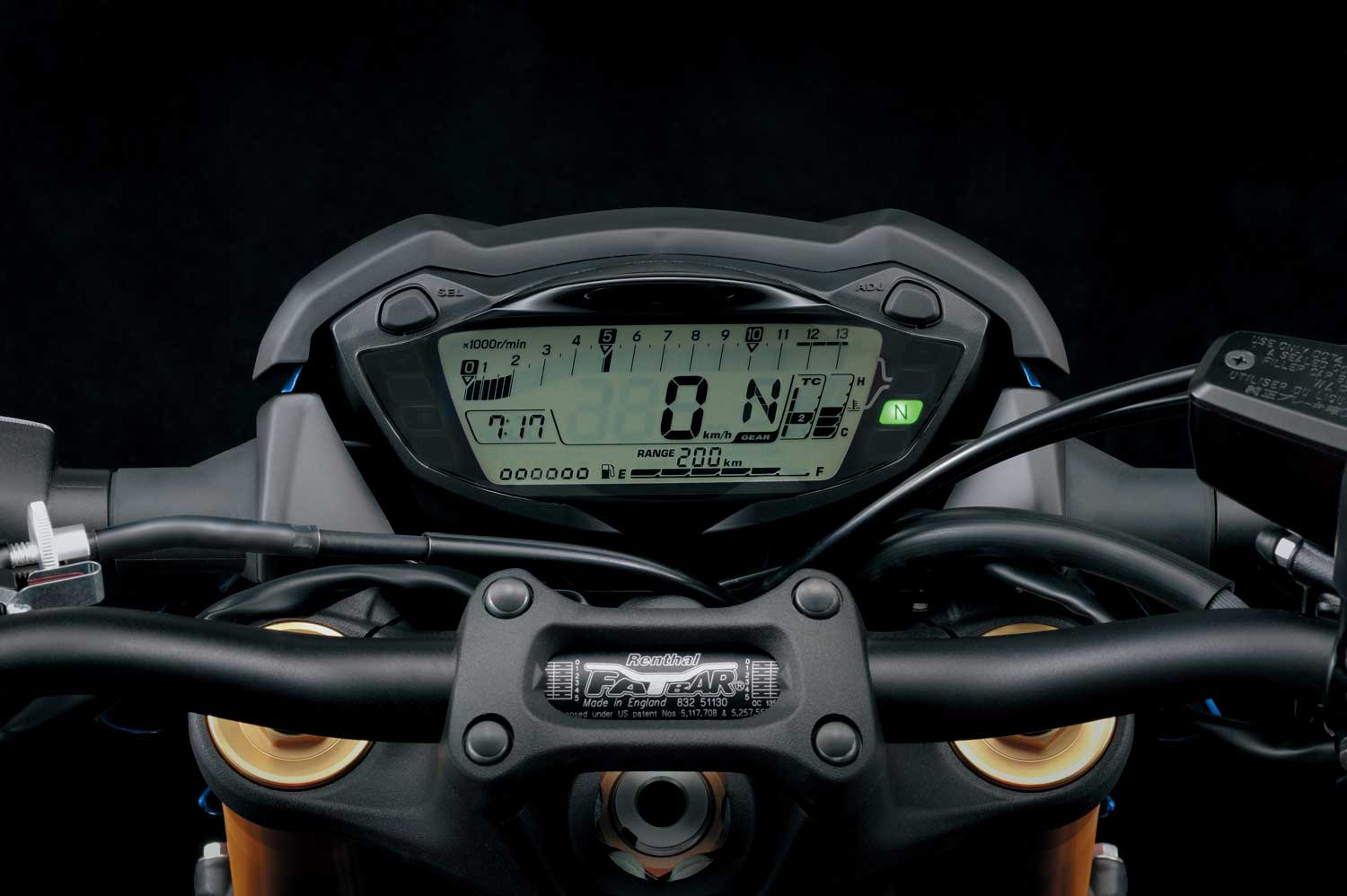

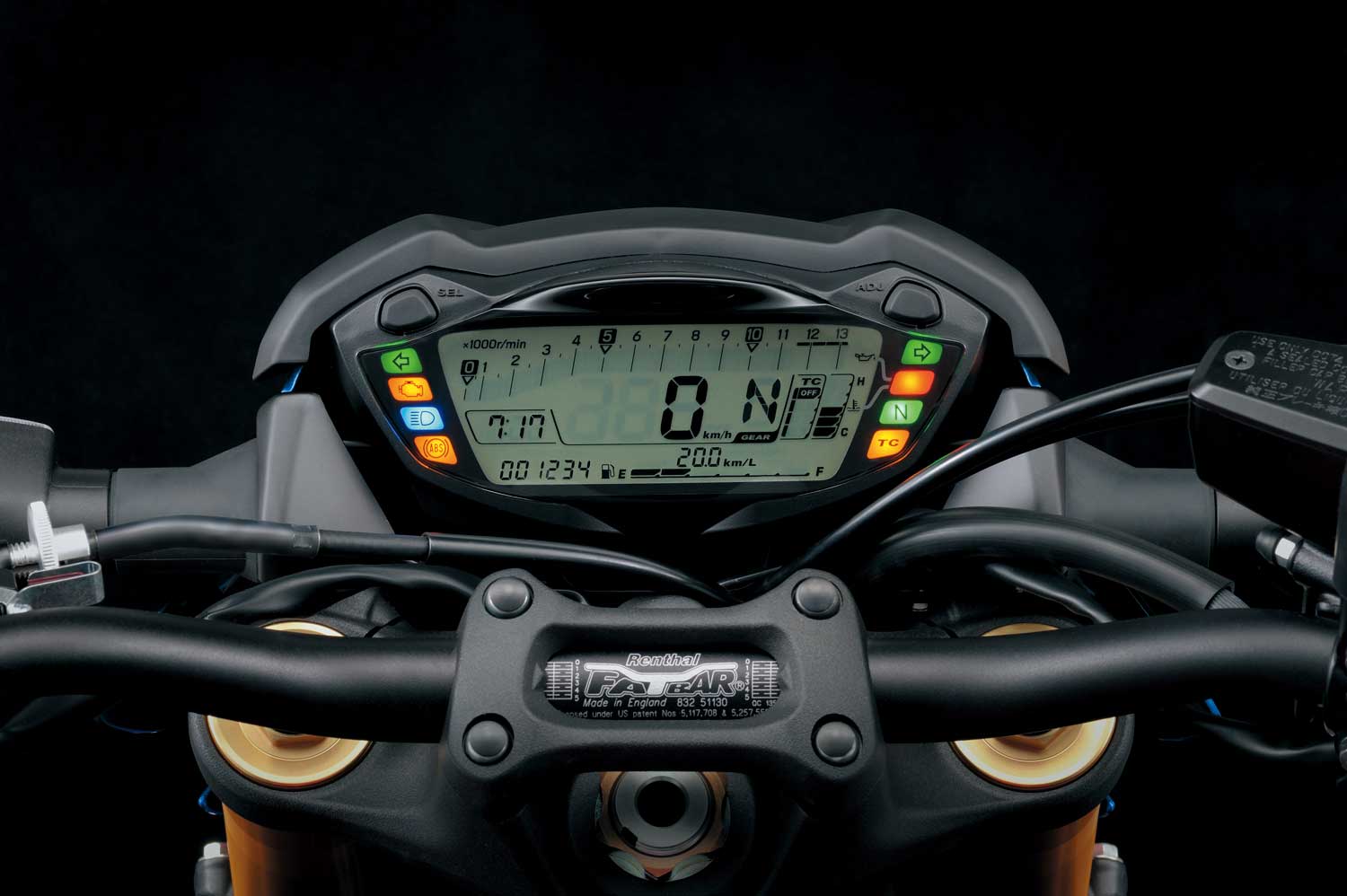

Multi-Function Instrument Panel

Full LCD Instrument cluster is designed lightweight and compact. Thanks to its full-LCD design, it eliminates motor and needle mechanics, it weighs only 275g. (i.e. GSR750 instrument: 320g, GSX-R1000 instrument: 380g)

Instruments are brightness-adjustable full LCD. The LCD readouts includes:

  • Speedometer
  • Tachometer
  • Odometer
  • Dual trip meter
  • Gear position
  • Water temperature
  • Driving range
  • Average fuel consumption
  • Instant fuel consumption
  • Traction control mode
  • Fuel gauge
  • Clock
  • White back light for good visibility in night time riding.

LED indicators include a turn signal, high-beam, Neutral, Malfunction indicator, ABS, traction control system and coolant temperature /oil pressure indicator lights are designed to easy to recognize.

Bar-type tachometer features “peak-hold” function, which shows peak rpm when rpm drops. So rider can recognize the peak rpm of the last moment when downshifting.



Suzuki Easy Start System

GSX-S1000 features a new Suzuki Easy start system. On the regular motorcycle engine starting, rider need to press-hold the starter switch until the engine fires up. On the GSX-S1000, all you need to do is just one-push the starter switch just like the recent automobile’s engine start system. The 32-bit ECM recognizes the signals and keeps starter motor working for a certain time.

Thanks to the new system, rider doesn’t have to pull the clutch lever in engine starting (when the gear is in neutral).

2015 Suzuki GSX-S1000 027



Chassis Design

Newly designed chassis is engineered in compact, lightweight package to provide agile, fun-to-ride character for variety of riders. And it is aimed to perform best in real world riding conditions – all roads which riders meet on public roads, city traffic, highway, rural roads and winding roads

2015 Suzuki GSX-S1000 055



Low Seat & Slim Bodywork

  • Seat height is 815mm, one of the lowest in 1000cc sport naked class.
  • Seat and fuel tank meet slim, it makes feet reach ground easier.

2015 Suzuki GSX-S1000 004

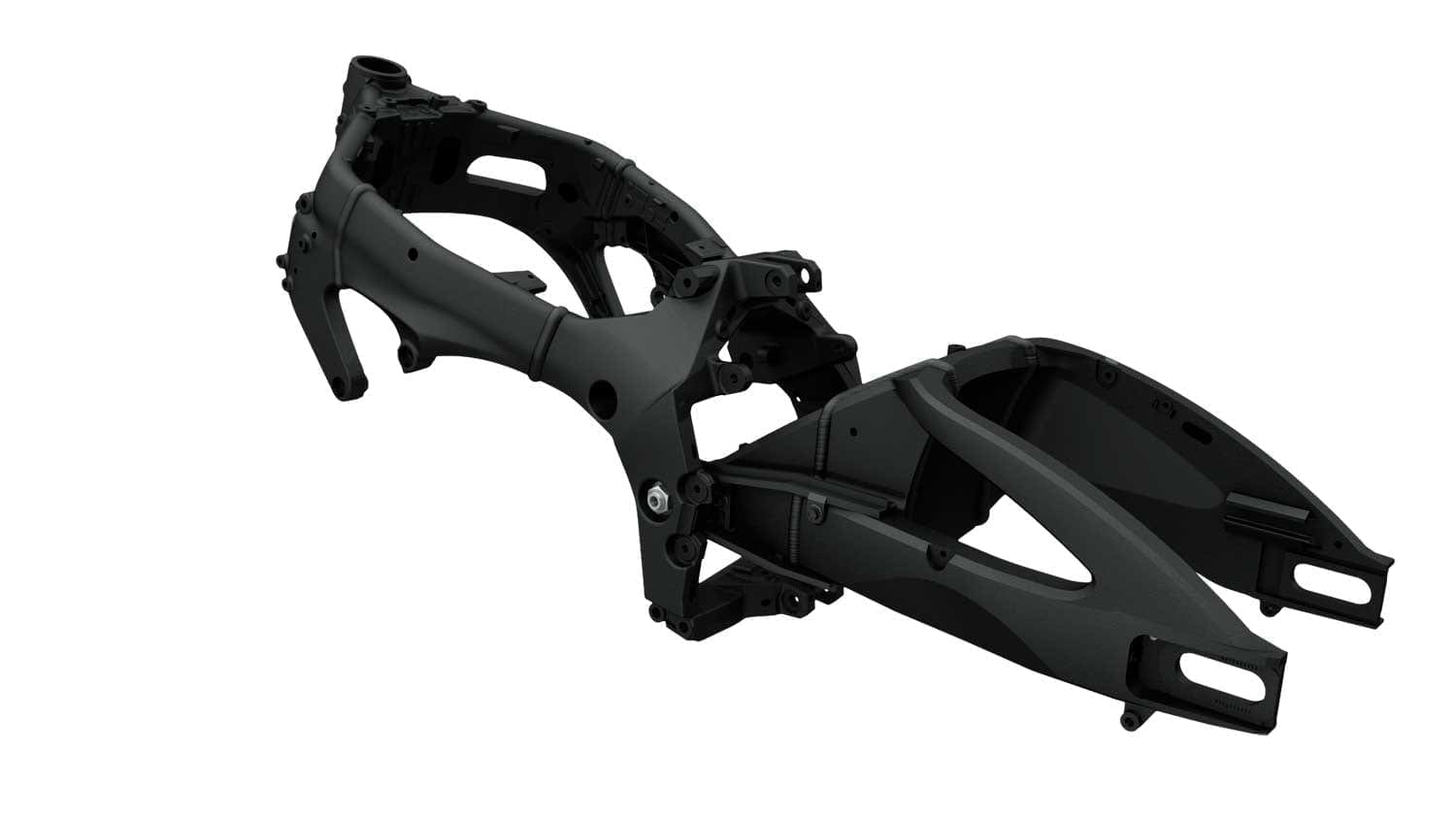

Frame & Swingarm

  • Newly designed main frame is aimed to provide nimble handling and great road holding performance.
  • Main tube is designed straight from steering head to swingarm pivot. It is ideal design to achieve both high rigidity and lightweight.
  • The frame is designed with latest FEM analysis technology; the weight of the frame is lighter than that of the current GSX-R1000
  • The aluminum alloy swingarm is derived straight from the current GSX-R1000.
  • The highly rigid, ruggedly braced swingarm provides great road holding performance and Superbike looks.

 2015 Suzuki GSX-S1000 044

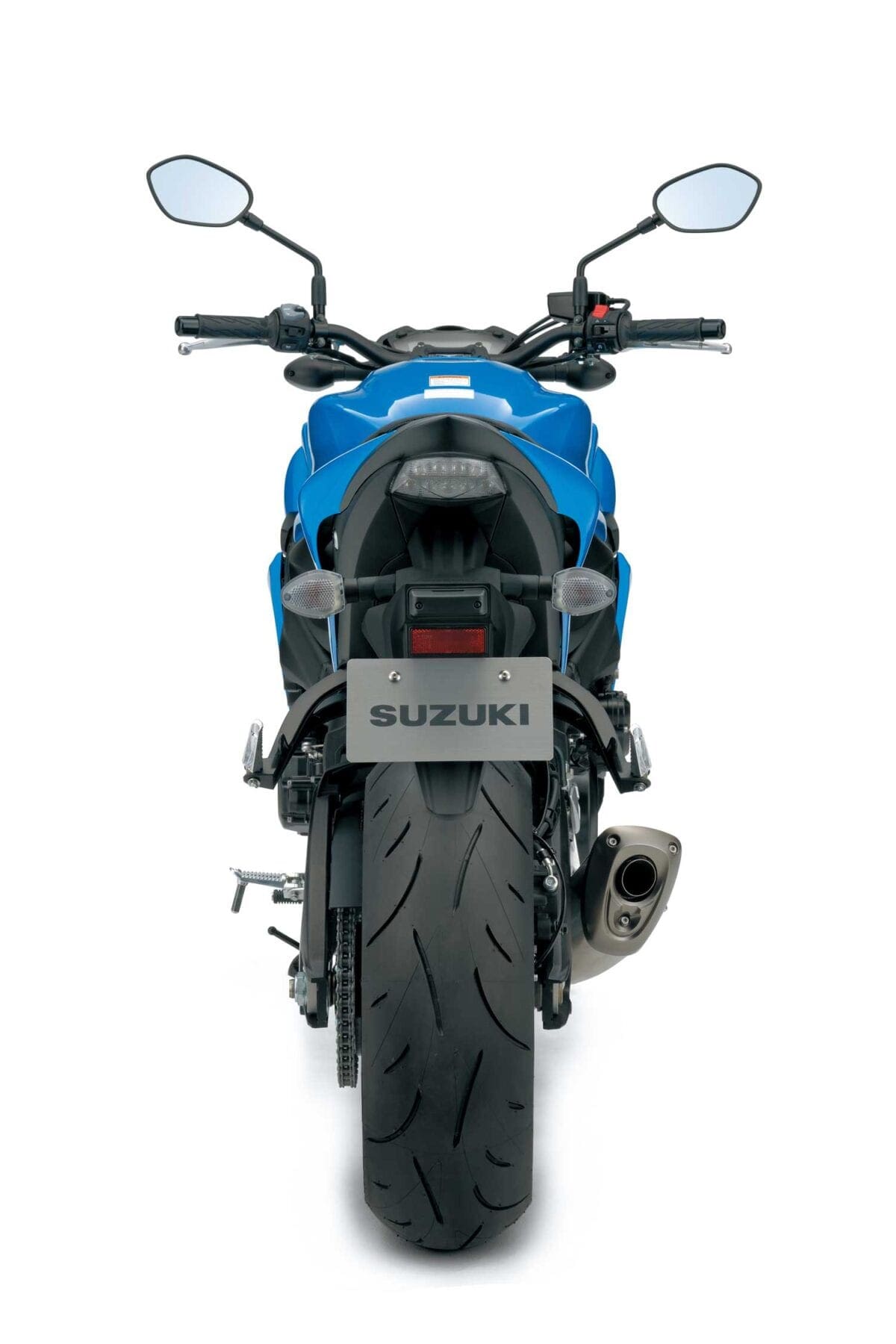

Dimensions & Ergonomics

  • Riding position is designed for sporting comfort. Sporty yet upright riding position reduces rider’s fatigue and increase the visibility.
  • The seat to fuel tank interface has a slim design, making it easy for riders to plant their feet firmly on the ground.

 2015 Suzuki GSX-S1000 008

Dimension GSX-S1000
Wheelbase TBA
Rake/Trail 25° / 100mm
Seat height 815mm

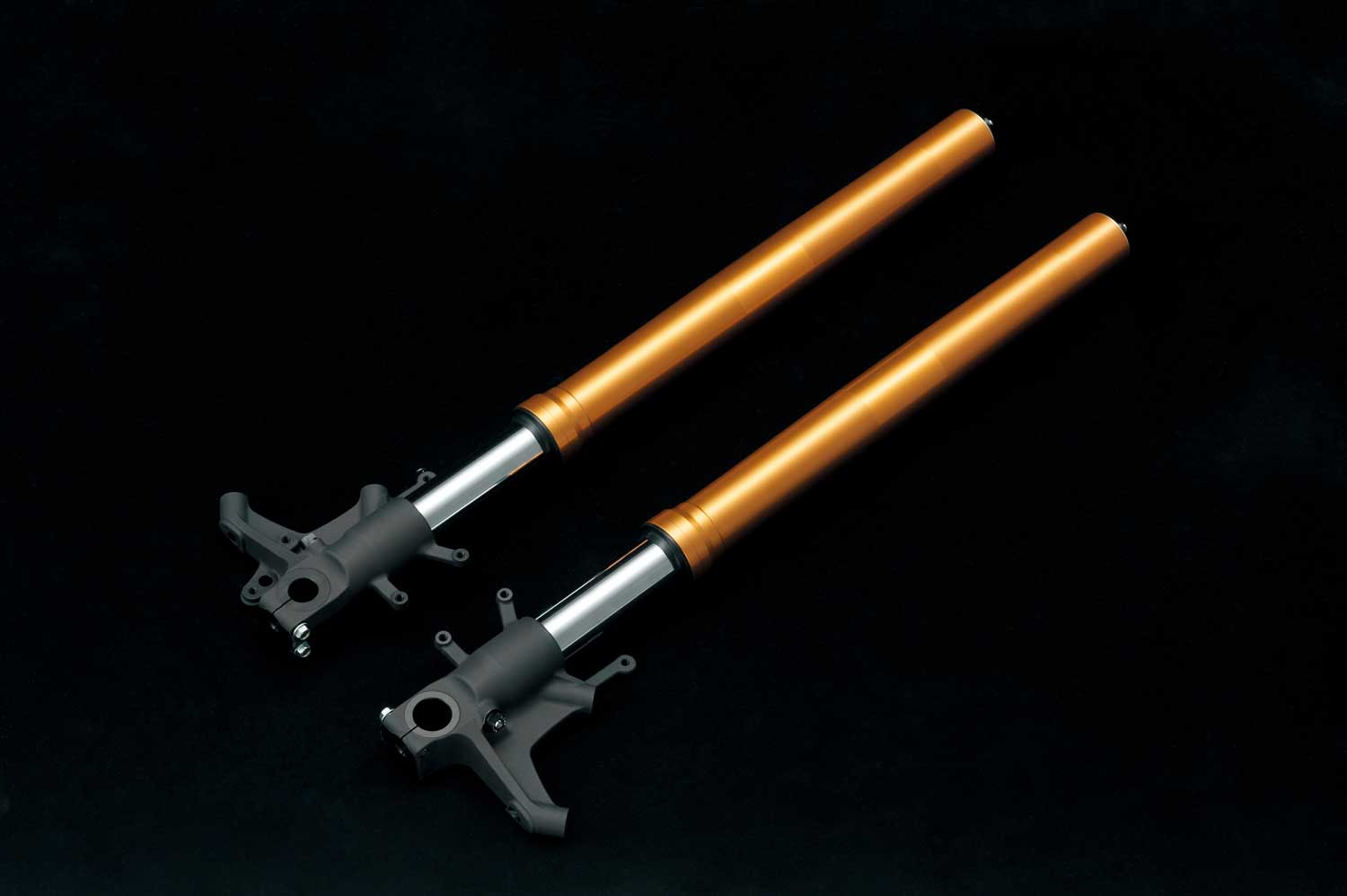

Full Adjustable Inverted Front Forks

Newly equipped, 43mm KYB Inverted front fork has 120mm stroke, provide sporty yet plush ride. The front fork is fully adjustable damping, rebound, compression and spring pre-load.

2015 Suzuki GSX-S1000 056

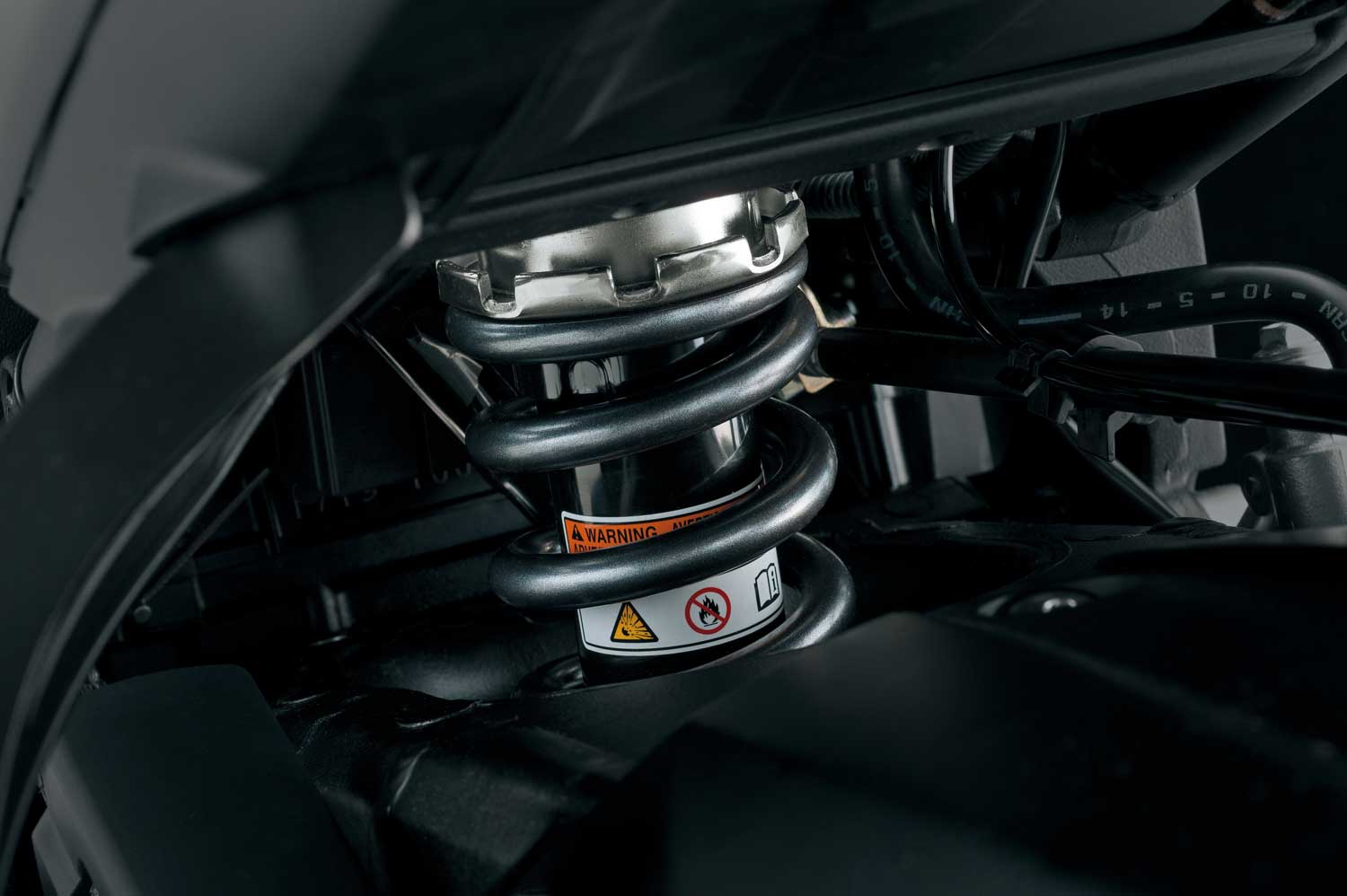

Rear Suspension

Link-type shock unit has 63 mm stroke, tuned for a superb progressive feel, reacts efficiently to road surface conditions, delivering an agile and stable feel.



Rear suspension is adjustable for rebound damping and spring pre-load.

 2015 Suzuki GSX-S1000 038

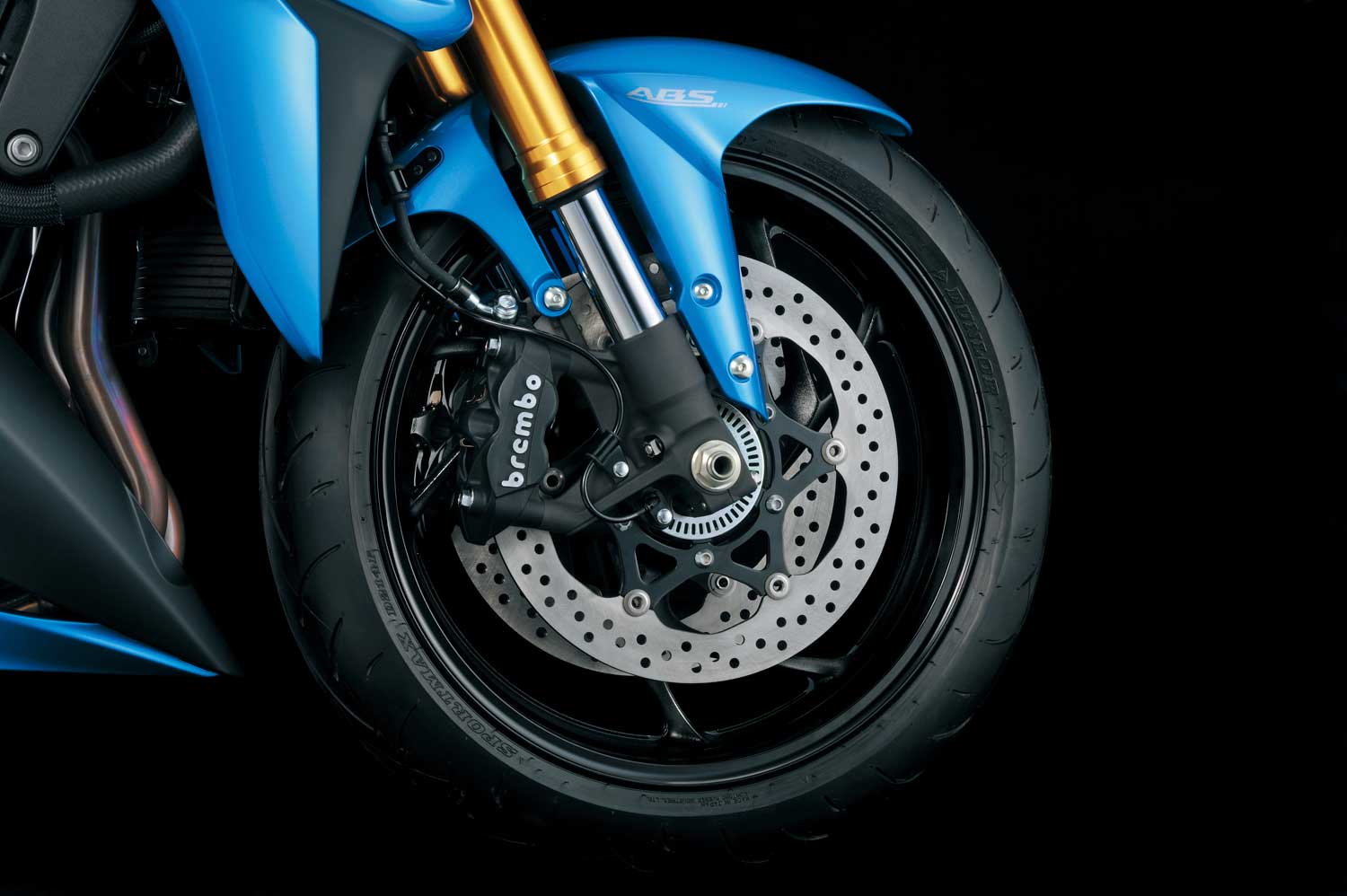

Brembo radial mount brake calipers and ABS

  • Brembo mono-block front brake calipers are mated with 310mm floating-mount dual discs provides strong braking performance.
  • The front brake calipers have four opposite pistons. (all 32mm)
  • The front brake calipers are same type used on 2014 GSX-R1000.
  • Antilock Brake System (ABS)* monitors wheel speed 50 times per wheel rotation, and matches stopping power to available traction.
  • ABS control unit, produced by BOSCH, is compact and lightweight design, weights only 640g.

2015 Suzuki GSX-S1000 028



Wheels & Tyres

Newly designed, 6-spoke cast aluminum wheels, manufactured by TRP, are made light weight, provide nimble handling and sporty appearance.

Dunlop radial tires, D214F (front) and D214R (rear) provide great grip in sport riding on the public roads.

Size Brand
Front tyre 120/70ZR17 D214F
Rear tyre 190/50ZR17 D214

 2015 Suzuki GSX-S1000 035

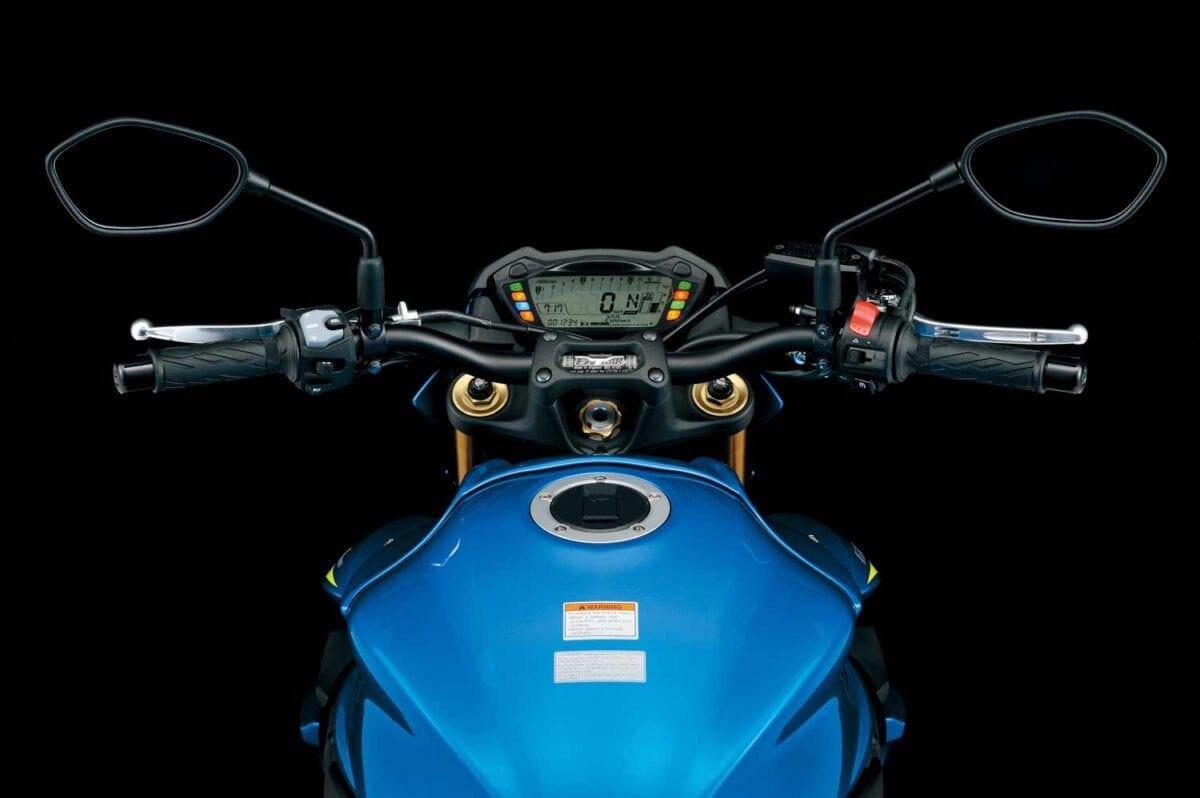

Handlebars

  • Handlebar is Renthal Fatbar. Its aluminum made, tapered design increases the rigidity of the handlebar, and reduces weight and vibration
  • Renthal is known as top-end handlebar brand in off-road motorcycle world. Its mat-black finish and Renthal logo on the center enhances customized look in the cockpit.

 2015 Suzuki GSX-S1000 022

Styling Design Concept

  • It impresses you with wild, bold and aggressive look.
  • Overall shape is inspired by a beast crouching for hunt.
  • LED position lights are shaped as look of “fang” of the beast.
  • A combination of black plastics and painted parts emphasize its sporty and aggressive image.
  • As the targeted customer is matured 40’s and above, the designer intends to create classy touch on the styling design.
  • The bodywork is designed with muscular, rounded surface while the overall shape is in aggressive form.
  • Distinctively shaped headlight is multi-reflector type with 12V60/55W bulb.
  • LED position lights are located under the headlight, shaped as a look of fang of a beast.

 2015 Suzuki GSX-S1000 021

Radiator shroud

The radiator shrouds are made of layered surfaces that emphasize its dynamic, wild, and fierce attitudes. They also contribute to aerodynamics and cooling performance.



Belly pans

The belly pans are designed in sharp lines and surfaces that connected dynamically to the tail section.



Tail section

The rear frame covers and tail section are made of layered surfaces. With the combination of painted parts and black parts emphasizes sharp and clean look of tail section. Its short tail design emphasizes the wild street fighter looks.



Short muffler

Muffler is designed short and compact, thanks to its chamber design, creates clean look of rear section.



TECH SPEC

Overall Length 2,115 mm
Overall width 795 mm
Overall height 1,080 mm
Wheelbase TBA
Ground clearance 140 mm
Seat height 815 mm
Curb mass TBA
Engine type Four-stroke, liquid-cooled, DOHC, in-line four
Bore x stroke 73.4 mm x 59 mm
Engine displacement 999 cm
Compression ratio 12.2 : 1
Fuel system Fuel injection
Starter system Electric
Lubrication system Wet-sump
Transmission 6-speed constant mesh
Suspension Front Inverted telescopic, coil spring, oil damped
Rear Link type, coil spring, oil damped
Rake / trail 25° / 100mm
Brakes Front Disc brake, twin
Rear Disc brake
Tires Front 120/70ZR17M/C (58W) tubeless
Rear 190/50ZR17M/C (73W) tubeless
Ignition system Electronic ignition
Fuel tank capacity 17 L

www.suzuki-gb.co.uk
